Control Transformer

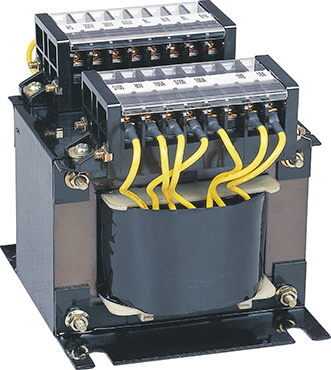

制御トランス
寸法表（単位：mm）
| 型番 | A ±1.0 |
B ±1.0 |
C MAX |
D ±1.0 |
E ±1.0 |
F | G MAX |
定格容量 |
|---|---|---|---|---|---|---|---|---|
| ISB-50-000 | 76.2 | 64.0 | 85.0 | 63.0 | 66.0 | 5.0×7.0 | 85.0 | 50VA |
| ISB-80-000 | 86.0 | 72.0 | 90.0 | 70.0 | 76.0 | 5.0×8.0 | 90.0 | 80VA |
| ISB-100-000 | 86.0 | 72.0 | 95.0 | 70.0 | 86.0 | 5.0×8.0 | 90.0 | 100VA |
| ISB-120-000 | 96.0 | 80.0 | 100.0 | 80.0 | 66.0 | 5.0×10.0 | 100.0 | 120VA |
| ISB-150-000 | 96.0 | 80.0 | 105.0 | 80.0 | 76.0 | 5.0×10.0 | 100.0 | 150VA |
| ISB-200-000 | 105.0 | 88.0 | 110.0 | 80.0 | 70.0 | 6.0×14.5 | 110.0 | 200VA |
| ISB-250-000 | 105.0 | 88.0 | 115.0 | 80.0 | 80.0 | 6.0×14.5 | 110.0 | 250VA |
| ISB-300-000 | 114.0 | 95.0 | 118.0 | 97.0 | 80.0 | 6.5×14.5 | 115.0 | 300VA |
| ISB-350-000 | 114.0 | 95.0 | 120.0 | 97.0 | 85.0 | 6.5×14.5 | 115.0 | 350VA |
| ISB-400-000 | 114.0 | 95.0 | 125.0 | 97.0 | 90.0 | 6.5×14.5 | 115.0 | 400VA |
| ISB-500-000 | 134.0 | 111.0 | 130.0 | 97.0 | 86.0 | 7.0×20.5 | 135.0 | 500VA |
| ISB-600-000 | 134.0 | 111.0 | 140.0 | 97.0 | 96.0 | 7.0×20.5 | 135.0 |
600VA |
| ISB-750-000 | 171.0 | 143.0 | 145.0 | 120.0 | 96.0 | 9.0×19.0 | 165.0 | 750VA |
| ISB-1000-000 | 171.0 | 143.0 | 155.0 | 120.0 | 106.0 | 9.0×19.0 | 165.0 | 1000VA |
| ISB-1500-000 | 171.0 | 143.0 | 175.0 | 120.0 | 126.0 | 9.0×19.0 | 165.0 | 1500VA |
| ISB-2000-000 | 190.0 | 160.0 | 195.0 | 140.0 | 140.0 | 9.0×20.0 | 185.0 | 2000VA |
| ISB-3000-000 | 222.0 | 185.0 | 205.0 | 160.0 | 142.0 | 10.0×20.0 | 250.0 | 3000VA |
| ISB-5000-000 | 222.0 | 185.0 | 250.0 | 160.0 | 188.0 | 10.0×20.0 | 250.0 | 5000VA |
| ISB-8000-000 | 270.0 | 225.0 | 270.0 | 200.0 | 202.0 | 12.0×20.0 | 290.0 | 8000VA |
上記の取り付け寸法とスペックは参考値です。別途設計、製造もできます。
