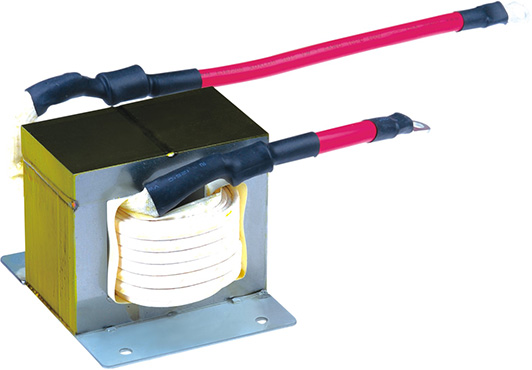

Reactor

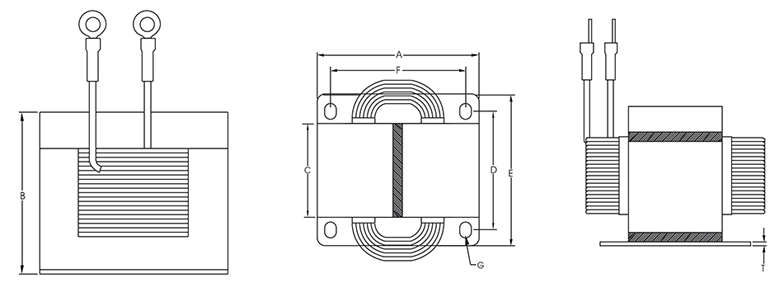

Dimension&Specification(unit:mm)
| Model | A ±1.0 |
B ±1.0 |
C ±1.0 |
D ±1.0 |
E ±1.0 |
F ±1.0 |
G | T |
|---|---|---|---|---|---|---|---|---|
| ACR-450-000 | 76.2 | 65.0 | 45.0 | 64.0 | 80.0 | 64.0 | 4.5×10 | 1.6 |
| ACR-550-000 | 86.0 | 73.0 |
50.0 | 62.0 | 80.0 | 62.0 | 5.0×8.0 | 1.6 |
| ACR-750-000 | 86.0 | 73.0 | 50.0 | 89.0 | 105.0 | 60.0 | φ5 | 1.6 |
| ACR-800-000 | 86.0 | 73.0 | 50.0 | 89.0 | 105.0 | 60.0 | φ5 | 1.6 |
The above mounting specifications and measurements are for reference only. We can design and manufacture products to meet your needs.
